玻璃电熔炉变压器
Glass Electric Furnace Transformer
概述：
I. The Overview of Glass Electric Furnace Transformer
本产品是我公司针对硅钼棒电炉（玻璃电熔炉）配套而设计，适用于电源隔离低压输出的场合。
Glass Electric Furnace Transformer is the matching design for silicon mo furnace(glass electric furnace). It is suited for power isolation low voltage output.
用途：
II. The Function of Glass Electric Furnace Transformer
本产品供硅钼棒（玻璃电熔）炉前电源之用。
Glass Electric Furnace Transformer is used for the front power of silicon mo rods (glass electric furnace).
结构特征：
III. The Structural Feature of Glass Electric Furnace Transformer
硅钼棒电热体的电阻随温度升高会急剧增大，开始加热时，电热体的电阻较小，所需电压较低，约为工作电压的l/ 4—1/3，根据硅钼棒电热体的工作电压及其电阻和温度的正向特性，变压器输出电压采用多抽头的方式来满足加热体在不同温度时需要的工作电压，从而提高电网功率因数。
The electric resistance of Si-Mo Rod Electric Heater will sharply amplifies as the temperature rises. When starting heating, the electric heater's resistance is relatively tiny and the needed voltage is relatively low(almost the working voltage's l/ 4—1/3). According to the Si-Mo Rod Electric Heater's working voltage and the forward characteristic of its resistance and temperature, the transformer's output voltage applys multi-tap way to satisfy the working voltage when the heater in different temperature. As a result, it can improve the power grid's power factor.
四． 订货须知：
IV. The Ordering instruction of Glass Electric Furnace Transformer
我公司均可根据各国客户的特殊需求进行针对性设计和生产，如果您有需要，需提供以下信息。
1、产品型号 2、额定容量 3、相数 4、联接组别
5、调压方式 6、高、低压电压 7、特殊要求
Our company can specially design and produce the products according to the customers' special need around the world. If you have any need, please provide the following information.
Product model 2. Rated capacity 3. Phase Number 4. Connection group
Voltage regulation mode 6. High、low voltage 7. Special demand
五．技术参数：

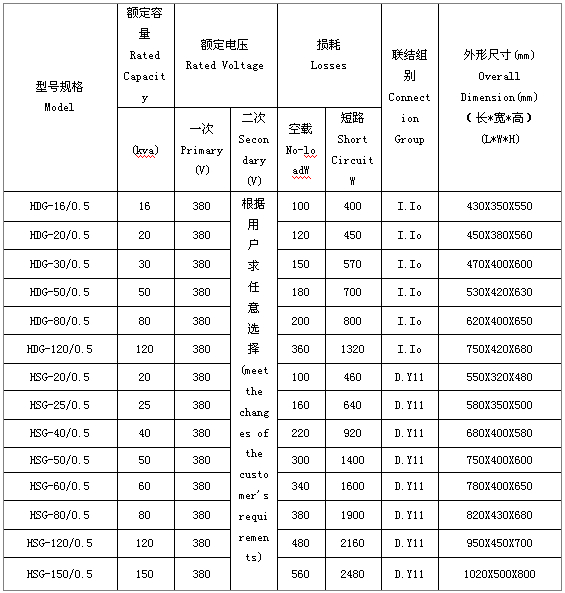

V. The Technical Parameters of Glass Electric Furnace Transformer
